Description

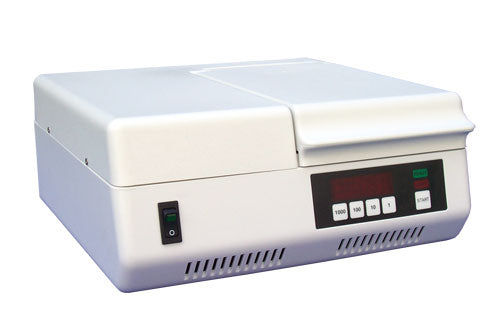

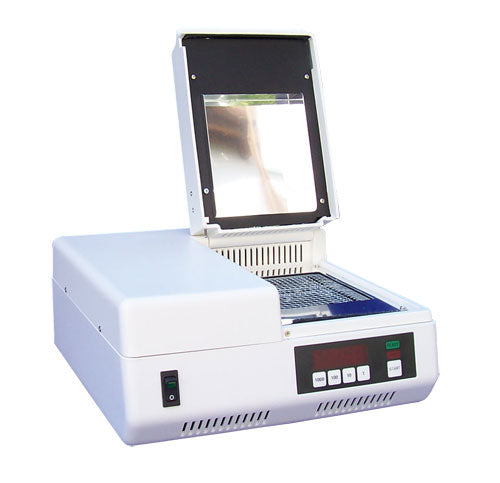

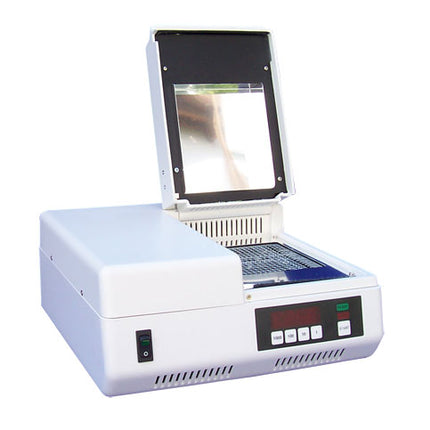

Otoflash® G171-2: High-power flash-curing machine
Otoflash® G171-6: High-power flash-curing machine with protective gas port
Flash-Curing Device for Photopolymerisation
Rapid and reliable curing of light-curable resins
Advantages
- Two flashbulbs
- 10 very intensive light-flashes per second between 280-580nm
- Short curing times
- Polymerizes all light-curable materials
- Enables the production of light curable workpieces of different consistencies and pigmentation as well as the implementation of UV-lacquering
- 1 year warranty
Specifications
- Dimensions of polymerisation chamber: 120*120*50 (mm)
- Number of light sources: 2 flash bulbs 100w
- Capacity: 4 BTE-aids or 6 ITE-aids
- Rated voltage: 100, 117, 230 volt AC, adjustable by switch
- Rated frequency: 50/60Hz
- Power input: 250watt
- Spectral distribution: 280-700 nm, maximum between 400 and 500nm
- Average flash power: 200watt
- Flash frequency: 10 flashes per second
- Digital timer: adjustable from 1 to 9.999 flashes
- Dimensions: 310*310*140 (mm)
- Weight: approx. 7kg
Click here to see the brochure.
