DOF Craft 5X - All-in-One Milling Machine
No Limitation and No Restriction
Built in PC
Built in Compressor
Built in Dust Extractor
Built in Water Pump
Click here to see more of DOF CRAFT 5X
5-AXIS Simultaneous Milling Machine90 Degree MillingOpen C-clap HolderX, Y and Z axis and A and B rotating axis can mill discs in 360 degrees in both clockwise and counterclockwise.
Wet & Dry Compatible MillingIt is available to choose a milling method for materials with wet and dry compatible milling.In addition, waterproof function prevents remaining humidity from permeating into milling area.
Sturdy & low-vibrationRegardless of its compact size, the internal structure of steel components deliver optimal milling speeds and durability.
Powerful MotorClosed Loop SystemIt is provided with a device that can remember numbers of a motor’s rotations that it prevents stepping out itself. Based on the stable motor, any materials can be milled.
Onboard ComputerA touch screen and a built-in computer are equipped.The machine control software has an intuitive user interface that anyone can easily use.
High Quality SpindleDurable Jäger spindle, which features up to 100,000 RPM and maximum power of 700 W, can mill hard materials stably.
StorageThe table provides a storage that milling accessories can be neatly stored. SThe table provides a storage that milling accessories can be neatly stored. Separate storage is not necessary.
Automatic Tool Changer21 tools capacity for all materials - Titanium, Glass Block, Zirconia and others.Accuracy, Convenient, Use Monitoring will be guaranteed.
User Training Schedule
Training 1st day
Understand Hardware - Machine Interface, Tools, Jig
Maintenance – Daily, Weekly, Monthly Checklist
Understanding milling materials – ceramic, zirconia, PMMA, Titanium custom abutment
Hyperdent basic
Understanding - Part type, part feature, template
Single crown milling in ceramic block and disc
Training 2nd day
Review Hyperdent basic
Single/bridge milling in block and disc
Abutment crown milling in disc
Abutment milling and review
Abutment milling in titanium blank
Reverse milling and review
Full arch milling – Hybrid supra structure in disc
Full arch special connection – Powerball, Vortex, Rosen, Luisiana screw (Optional)
Brochure
Please click here for the brochure.

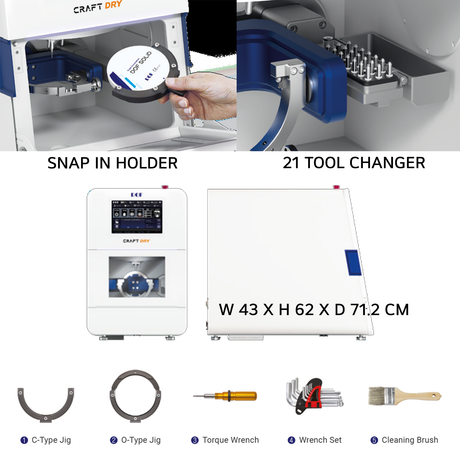

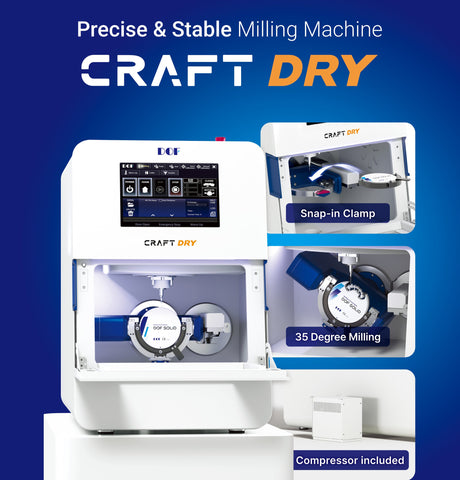

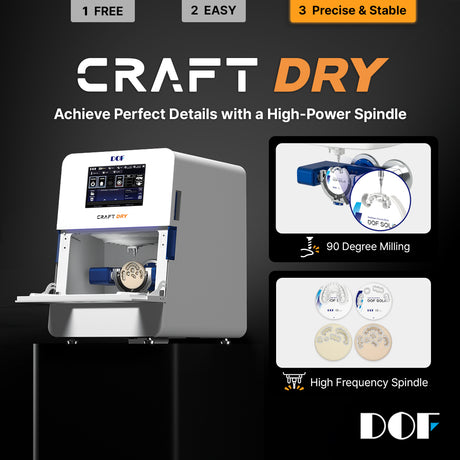

DOF CRAFT 5X DRY (All-in-One)
Spindle 800W
5 Axis with 90 Degree Milling
Snap in Jig Mounting
Automatic Tool Change (21 Tool Pockets)
Cabinet included
Built in Operation System, Compressor and Dust Extractor
5-AXIS Simultaneous Milling Machine
Zirconia, PMMA, Hybrid Ceramic
Crown, Bridge, Full Arch, Bite Splint, Denture, AoX Supra Structure
Dry Only Milling
Continue the quality of CRAFT5X Hybrid
Sturdy & low-vibration
Regardless of its compact size, the internal structure of steel components deliver optimal milling speeds and durability.
Powerful Motor
Closed Loop System
It is provided with a device that can remember numbers of a motor’s rotations that it prevents stepping out itself. Based on the stable motor, any materials can be milled.
Onboard Computer
A touch screen and a built-in computer are equipped.
The machine control software has an intuitive user interface that anyone can easily use.
High Quality Spindle
Durable spindle, which features up to 60,000 RPM and maximum power of 800 Watt, can mill hard materials stably.
Storage
The table provides a storage that milling accessories can be neatly stored. The table provides a storage that milling accessories can be neatly stored. Separate storage is not necessary.
Automatic Tool Changer
21 tools capacity
Brochure
Click here to see the brochure
Market Share No. 1 in Korea!
EVEREST MULTILAYER UVS
EVEREST Multilayer Universal Speed (UVS) combines our latest multilayer Zirconia technology to create a strong but transparent material with no compromise to shade stability in both speed and normal sintering. Suitable for single crowns and full arches, no variation in translucency or strength.
Super Fast Sinter
40 minutes
Single crown
Normal Sinter
4 hours
From single to full arch
Translucency and Strength
45 - 48% Translucency
900 - 1150 Mpa Strength

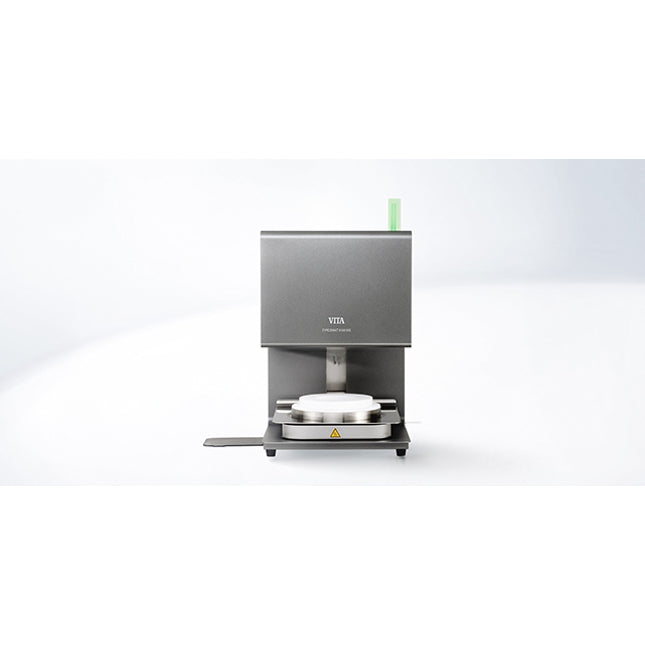

VITA ZYRCOMAT® 6100 MS (40 min Sinter)
VITA ZYRCOMAT 6100 MS delivers the quality and reliability that you have come to expect from VITA.
The sintering furnace offers a choice of three sintering modes: HighSpeed, conventional and user-defined, giving you flexibility at all times. Optimized for use with VITA materials, as well as with all commercially available ZrO2 and Al2O3 ceramic dental framework materials, this high-temperature sintering furnace sets the pace in terms of user orientation and ergonomics.
An LED light bar and freely-adjustable acoustic alerts, reliably provide information on firing progress even across longer distances. The ventilation system is cleverly designed so that rising heat is safely routed away from the electronics, ensuring long-term protection of the heating and electronic elements.
Features/Benefits
Homogenous distribution of heat inside the sintering chamber
Fully automatic calibration with guaranteed temperature accuracy (VITA Autoadjust)
An extended service life and long-term energy-saving operation (VITA Energy Efficiency)
Gentle sintering of all conventional materials such as white and highly-translucent industrially and manually pre-colored zirconia in all operating modes for consistent and convincing firing results
HighSpeed sintering under 60 minutes (VITA HighSpeed)
HighSpeed sintering of bridge frameworks with up to 14 units
Sintering of all ceramic dental framework materials based on ZrO2 and Al2O3
Gentle, stress-free sintering in all modes through controlled cooling to 400°C
Integrated low-temperature pre-drying (VITA PreDry) with a seamless transition to the sintering program
Optional modular system upgrades for greater flexibility and cost-effectiveness
Sintering up to 80 units stacked in two levels
Accessories (can be purchased separately):
FDS program (Firing Data System) - PC software for administrating and archiving firing data
1 Switchbox (Prod. No. D65000) is required for multiple-furnace control with one VITA vPad control unit. The switchbox is suitable for connecting up to 4 furnaces
Side panels in three different colors for customizing the VITA ZYRCOMAT 6100 MS
Set of numbers (No. 1-4)
Technical data
Width: 315 mm
Depth: 500 mm
Height: 470 mm
Weight: 27 kg (painted)
Casing: painted anthracite finish
Chamber diameter : 90 mm
Chamber height: 70 mm
Firing temp.: max. 1600°C
Power supply: 230 volt AC, 50 Hz
Power consumption: max. 1.5 kW
Classification: Protection class 1
In order to operate the furnace, you will need the VITA vPad excellence control unit.
Additional information
Click here to see product details and download

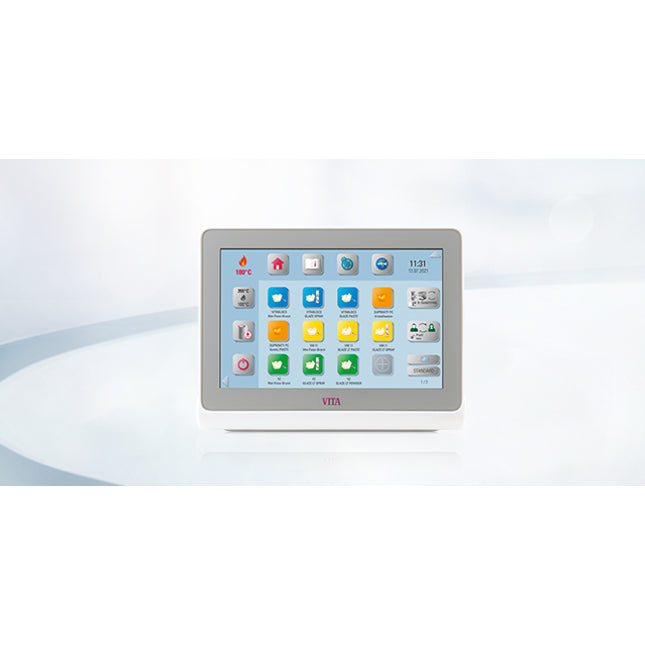

VITA vPad Excellence
The VITA vPad excellence is a state-of-the-art control unit that complies with all the international safety standards.
Control unit for:
VITA VACUMAT 6000 M
VITA VACUMAT 6000 MP
VITA ZYRCOMAT 6000 MS
VITA ZYRCOMAT 6100 MS
Hardware:
Latest generation 10" touch display
SD card reader for transferring photos
Two USB ports for transferring data
Individually adjustable stand for optimal work with the device
2 GB of storage for customer data (firing programs, photos, PDF files)
Software:
Operation of multiple furnaces
Use a VITA vPad excellence and the VITA SWITCHBOX to operate up to four furnaces
Guided initial setup
When starting for the first time, you will be guided through the initial setup. Once complete, the VITA firing system is perfectly adapted to your needs (Product video see download area)
Profile management
Creation of up to 12 customized users
Every user can be assigned a name, icon and color
Customizable desktops
Creation of up to 50 customized desktops per user with firing programs, photos and PDFs
Every desktop can be assigned a name and a color
Firing programs
Pre-installed firing programs for VITA materials and the most common CAD/CAM materials
Integrated working instructions for all VITA materials
Create new firing programs or modify existing firing programs
Digital assistance function
If necessary, you can use the step-by-step instructions integrated in the software
This supports you with features such as video and photo tutorials
Saves all firing data for quality assurance
The temperature gradient in the firing chamber is logged every time firing is carried out
Logged data can be exported to a USB flash drive or forwarded online directly to the VITA service team
Data transfer
Profiles, firing programs and device data can be transferred to other VITA vPad comfort/excellence units or to a PC
Backup function for complete backup of all vPad data
Technical data
Width: 260 mm
Depth: 150 mm
Height: 200 mm
Weight: 1,6 kg
Casing: Plastic
Chamber diameter : 80 mm
Classification: Protection Class 1
