Description

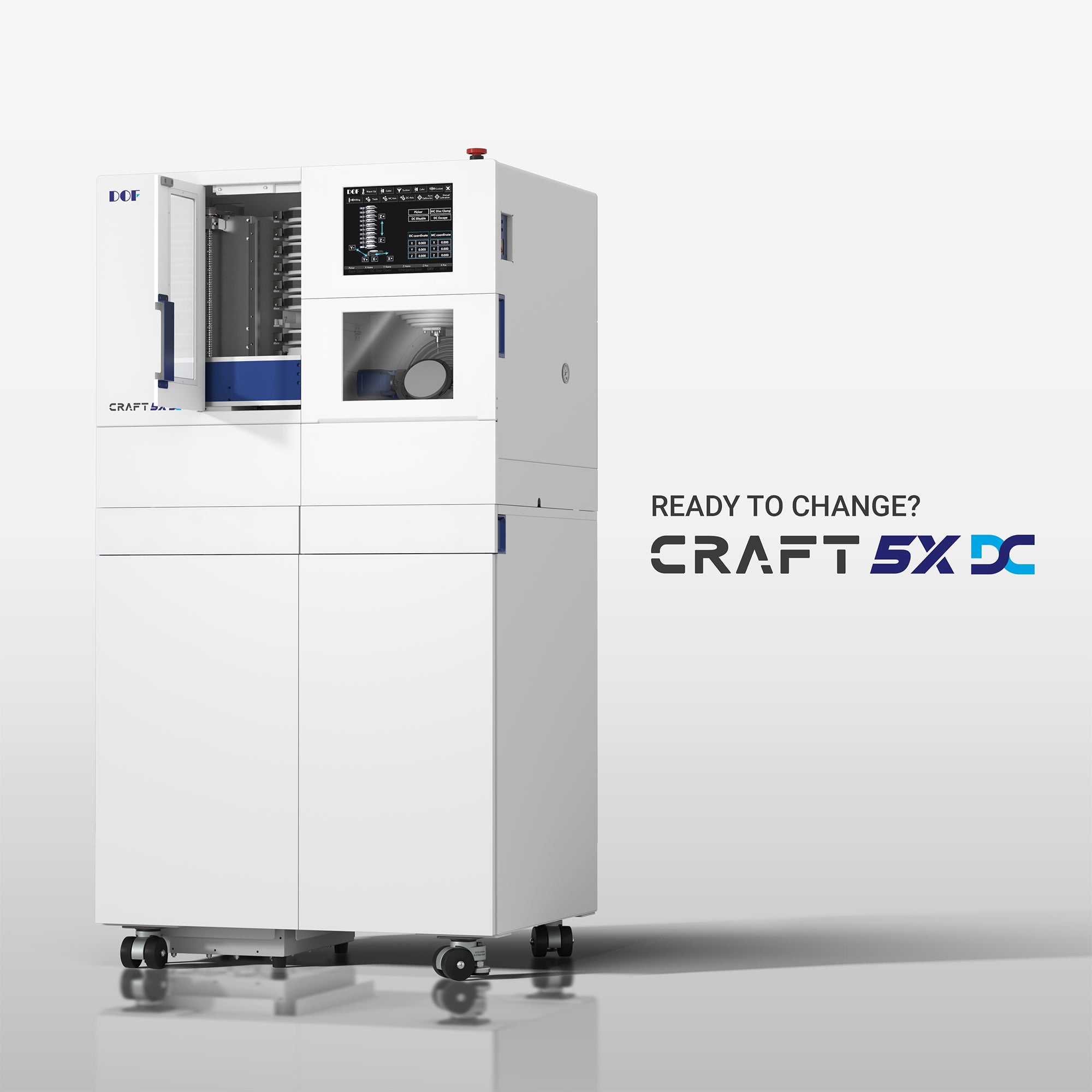

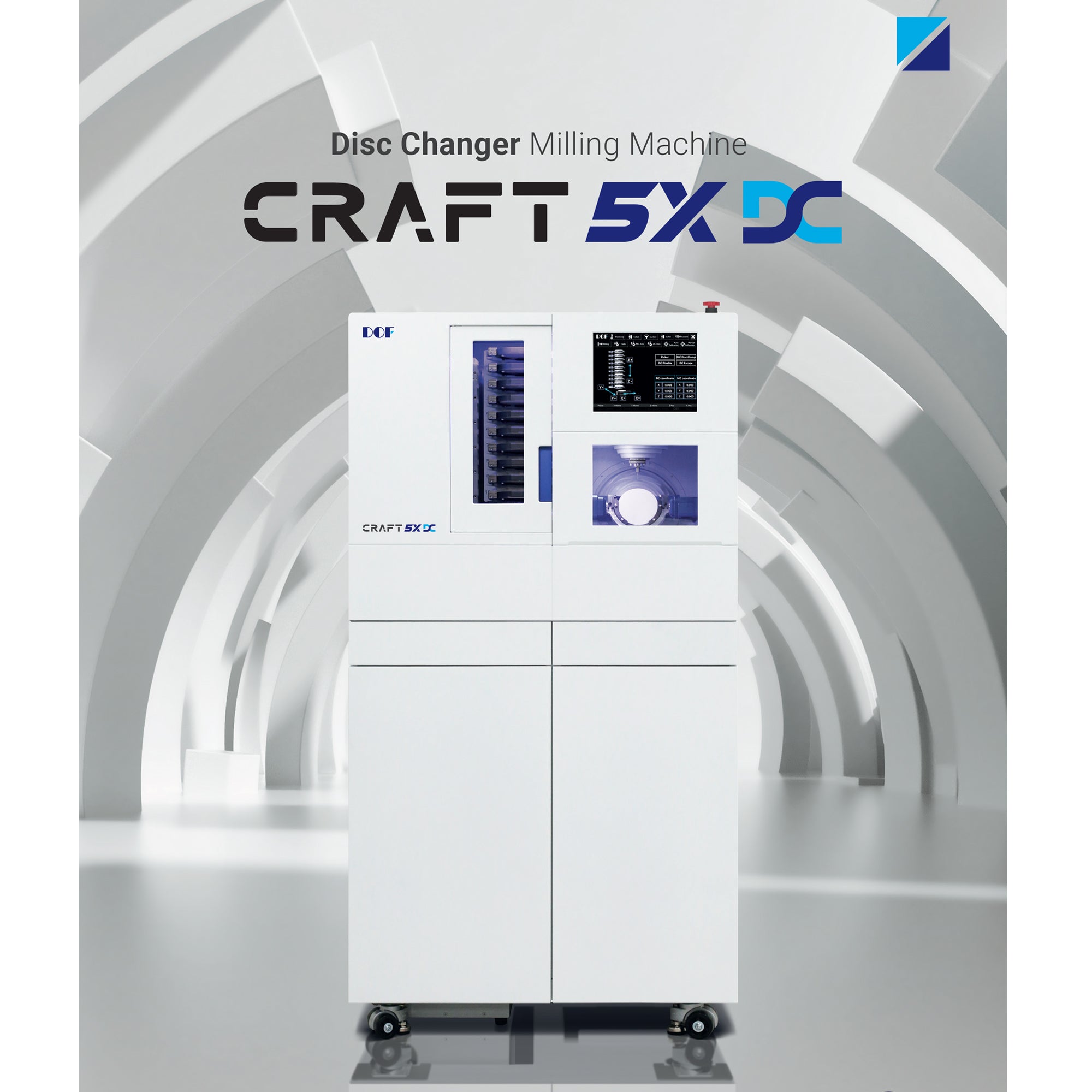

DOF Craft 5X Disc Changer 10 - All-in-One Milling Machine
No Limitation and No Restriction
- Built in PC
- Built in Compressor
- Built in Dust Extractor
- Built in Water Pump

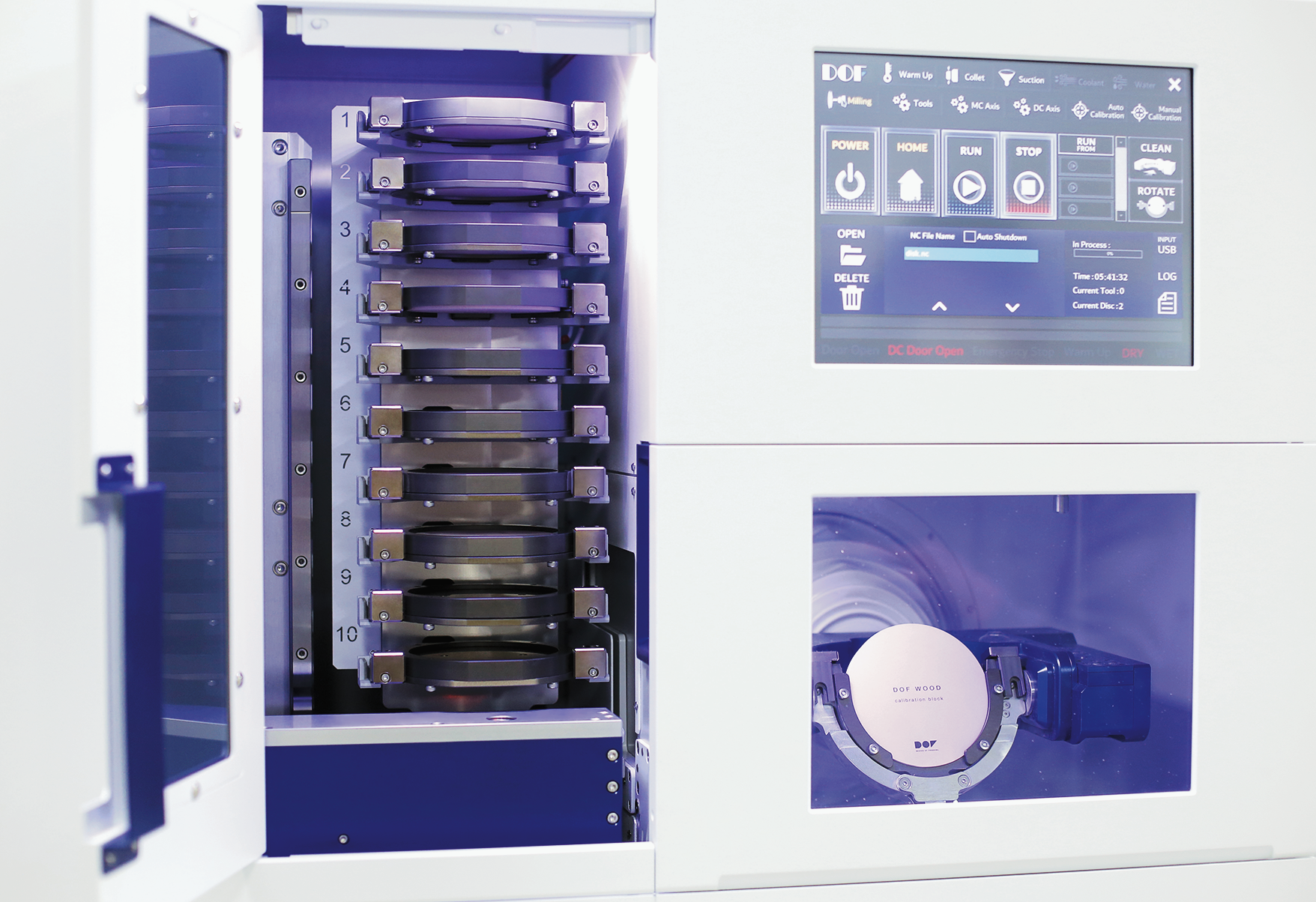

10 Discs for Non-Stop Milling
CRAFT 5X DC is equipped with complete automation system milling up to ten discs continuously.
This automated milling work will increase technicians to perform without any limitation by the type of materials or the size of prostheses. Therefore, it dramatically increases
work efficiency and cuts labor costs.

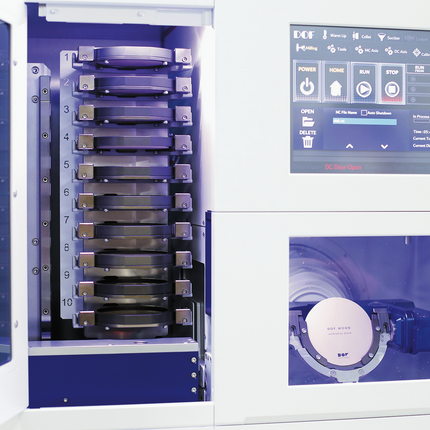

Vertical Disc Changer
The disc changer has been vertically designed to fully maximize the user’s convenience as well as making cleaning and replacing the discs simple.

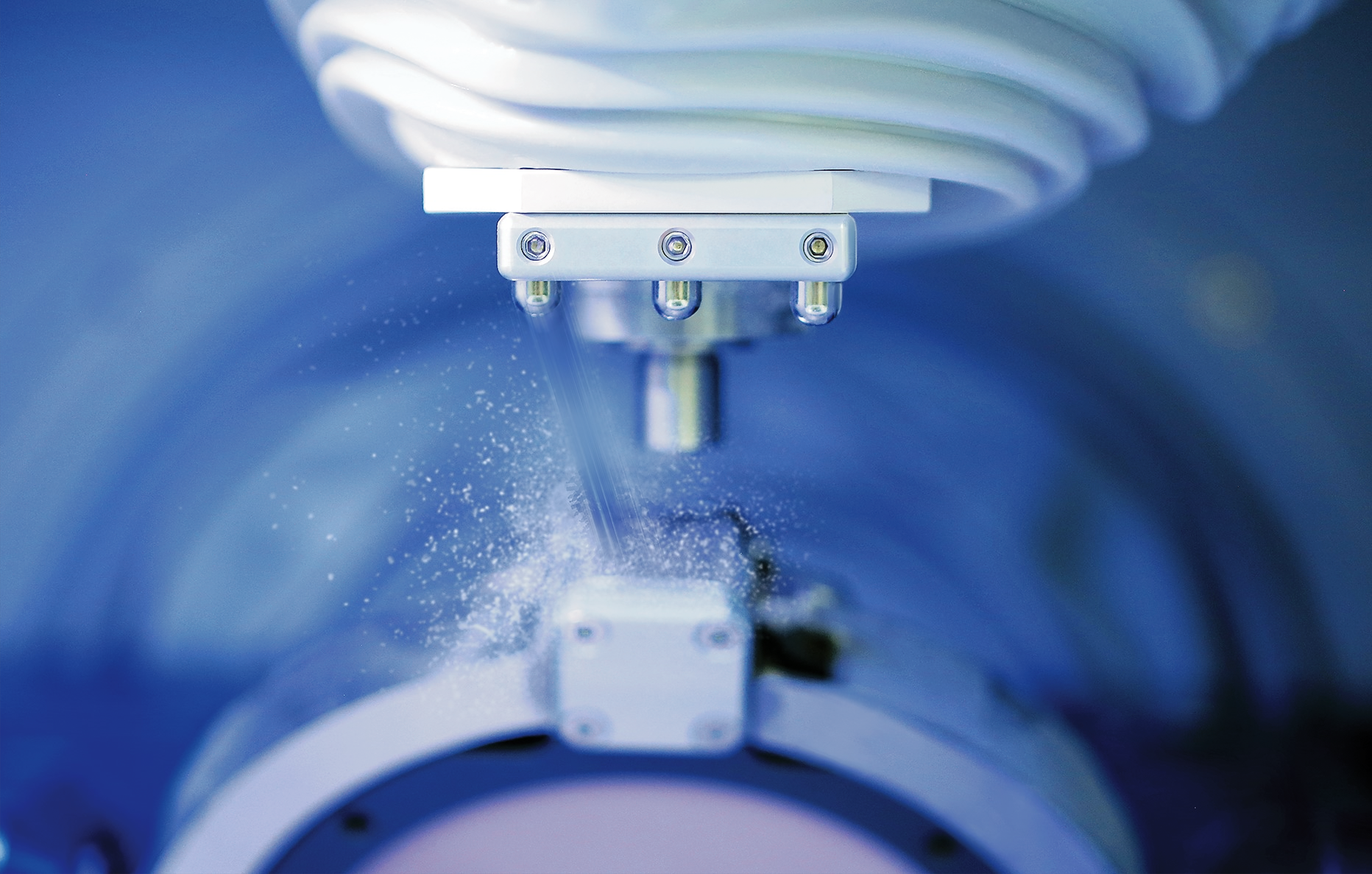

Cleaning Technology for Perfect Performance
CRAFT 5X DC’s automated system foundation lies with its cleaning system. The perfect cleaning system is ensured using compressed air to remove dust and to set the disc in its exact position. With DOF’s original ultra-precision sensor technology, it ensures error-free milling and providing a powerful yet smooth milling performance.
Smart Milling, Ultra-Precision Sensor
CRAFT 5X DC is equipped with an ultra-precision sensor to ensure error-free milling. Each sensor works organically to control the smart milling performance of CRAFT 5X DC. The sensors allow for safe milling under any conditions by detecting the discs presence in the changer as well as the state of discs attachment.
Specifications
| Dimensions |
Machine |
910mm x 670mm x 710mm (W x D x H) |
| Table |
910mm x 670mm x 1000mm (W x D x H) |
| Weight |
Machine |
150kg |
| Table |
80kg |
| Spindle |
Manufacturer |
Jäger |
| Shank |
4ø |
| Maximum RPM |
100,000 rpm |
| Maximum Power |
0.7kw |
| Number of Disc Blank |
10 |
| Max. Thickness of Disc |
30mm |
| Number of Tools Housed |
21 |
| Number of Pre-milled Simultaneous Milling |
10 |
| Number of Reverse Type Pre-milled Simultaneous Milling |
6 |
| Number of Glass Ceramic Simultaneous Milling |
6 |
| Number of Hybrid Ceramic Simultaneous Milling |
12 |
| Required Power |
1.5kw |
| Material Compatibility |
Zirconia, Wax, PMMA, PEEK, Composite Resin, Hybrid Ceramic |
| Glass Ceramic, Pre-Milled Titanium Abutment |
Other Specifications are the same as Craft5X.
Click here to see more of DOF Craft 5X
5-AXIS Simultaneous Milling Machine
90 Degree Milling

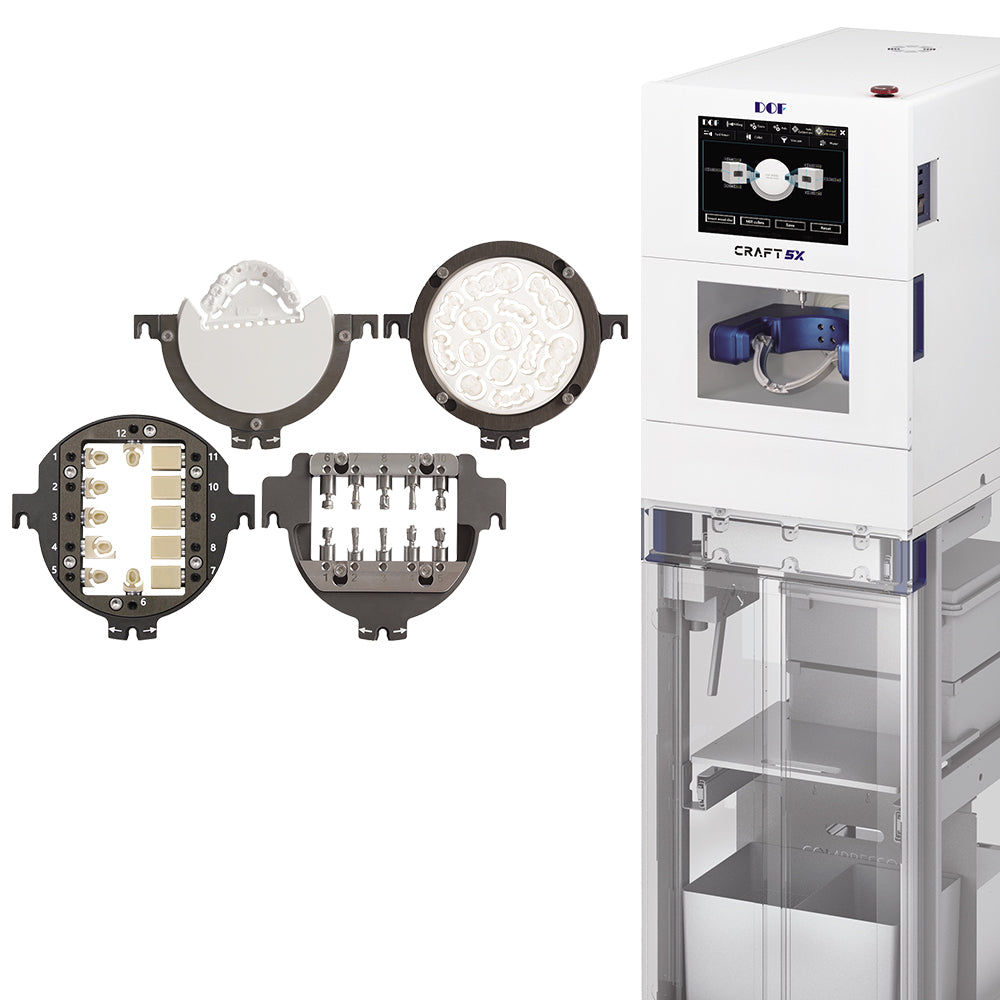

Open C-clap Holder
X, Y and Z axis and A and B rotating axis can mill discs in 360 degrees in both clockwise and counterclockwise.
Wet & Dry Compatible Milling
It is available to choose a milling method for materials with wet and dry compatible milling.
In addition, waterproof function prevents remaining humidity from permeating into milling area.
Sturdy & low-vibration
Regardless of its compact size, the internal structure of steel components deliver optimal milling speeds and durability.
Powerful Motor
Closed Loop System
It is provided with a device that can remember numbers of a motor’s rotations that it prevents stepping out itself. Based on the stable motor, any materials can be milled.
Onboard Computer
A touch screen and a built-in computer are equipped.
The machine control software has an intuitive user interface that anyone can easily use.
High Quality Spindle
Durable Jäger spindle, which features up to 100,000 RPM and maximum power of 700 W, can mill hard materials stably.
Storage
The table provides a storage that milling accessories can be neatly stored. SThe table provides a storage that milling accessories can be neatly stored. Separate storage is not necessary.
Automatic Tool Changer
21 tools capacity for all materials - Titanium, Glass Block, Zirconia and others.
Accuracy, Convenient, Use Monitoring will be guaranteed.
